100,000 BTU AIRCRAFT COOLING MODULE

SUPPLEMENTAL HEAT OPTION

Optional supplemental heat is supplied by thermal heater rods inserted with the evaporators. When selecting supplemental heat, power is supplied through circuit breakers to separate heater relays.

Supplemental heat control is equipped with thermal safety switches, preventing heating operations when the evaporator coil is too hot or when ambient air temperature is above a pre-determined setting.

Supplemental heating systems are also equipped with evaporator/heater fan airflow safety switches preventing the heater relay from energizing without adequate system airflow.

The optional temperature indicating system consists of a single indicator with a multi-position rotary switch. The gauge-monitored positions include #1 Compressor Discharge, #2 Compressor Discharge, #1 Evaporator Outlet and #2 Evaporator Outlet.

NASI – NTEC ELECTRIC SUPPLEMENTAL AIR CONDINTIONING SYSTEM

GROUND BASED SYSTEMS

Aircraft with limited or no access to passenger gate cooling systems use NTEC Electric Vapor Cycle Air Conditioning.

UNIITS OPERATING ON ANY AVAILABLE POWER: AIRCRAFT 400Hz GPU (GROUND POWER UNITS) OR 50Hz/ 60Hz STANDARD UTILITY POWER. OPTIONAL POWER SPLITTER ALLOWS NTEC UNITS TO POWER UP WITH
THE GPU SUPPLYING POWER TO THE AIRCRAFT.

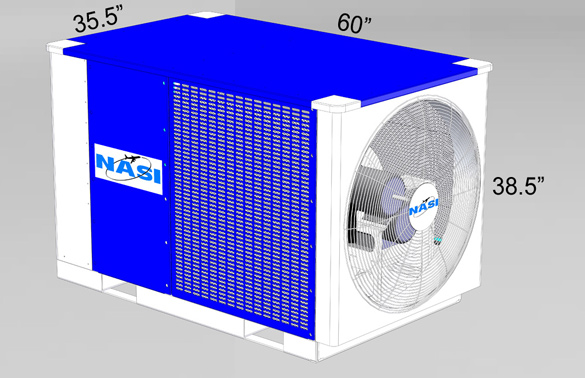

G-100

Configuration Options:

1. Alternate Input Power, 380-460 Volts/
2. Drain, Condensation, (Optional Water Pump available at time of order)
3. Power Cord, (Optional Split Power Cord)
4. Storage Cover, (Optional Severe Weather Storage Cover)
5. RAMP Cart, (Optional Roll Cart with pneumatic tires)

Included in Base Package:

• 20 foot Electrical Cable
• 30 foot of 7” delivery hose

Optional Equipment:

• Severe Weather Cover
• Tow Cart
• Power Splitter (Provides power to Aircraft Cooling Module with Aircraft Ground power.)
• Condensation Pump
