NTEC120M
120,000 BTU AIRCRAFT COOLING MODULE
UNITS OPERATING ON ANY AVAILABLE POWER: AIRCRAFT 400Hz GPU (GROUND POWER UNITS) OR 50Hz/ 60Hz STANDARD UTILITY POWER. POWER Y CORD ALLOWS NTEC UNITS TO POWER UP ON THE GPU SUPPLYING POWER TO THE AIRCRAFT, AT THE SAME TIME.
| / |
|
| Size |
33L x 41W x 44H |
| Weight |
650 Lbs. Est. |
| Fork Points, Side |
Standard |
| Cooling Capacity |
120,000 Btu/h (Evap 45/Cond 100F) |
| *Heating Capacity |
24,500 Watts Rated (83,600 Btu) |
| Power Input, Optional Power Input |
200 – 240 VAC |
| Blower, Evaporator & Heater |
3,000 CFM @ 5 in/wg |
| Fan, Condenser |
12,000 CFM Rated |
| Evaporator/ Heater Discharge Duct |
10” Dia |
| Filters |
Evaporator & Condenser Inlet |
| Drain, Condensation |
Standard Garden Hose Type Connection |
| Power Cord Standard |

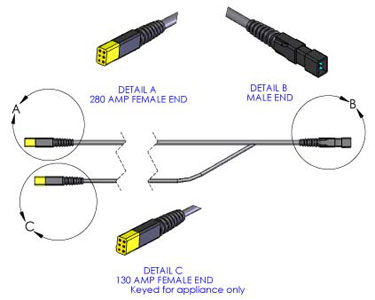

Patented Power Y Cord with Standard 400 Hz Ground Power Plugs |
| Storage Cover |
Severe Weather Storage Cover |
| RAMP Cart |
*(Optional Ramp Cart with pneumatic Tires)
Towable behind vehicle |
*Configuration Options:
1. RAMP Cart, (Optional Roll Cart with pneumatic tires)
Included in Base Package:
- 20 foot Electrical Cable Power Y Cord (Supplies power to the cooling unit with aircraft ground power)
- 30 foot of 10” delivery hose
- Severe Weather Storage Cover
Optional Equipment:
- Towable Ramp Cart with Equipment Lockdown and Release
+120,000 BTU (+10 Ton) Aircraft Cooling Module NTEC120M
NASI – NTEC ELECTRIC SUPPLEMENTAL AIR CONDITIONING SYSTEM
GROUND BASED SYSTEMS
Aircraft with limited or no access to passenger gate cooling systems use NTEC Electric Vapor Cycle Air Conditioning units operating on any available power, aircraft 400 Hz GPU (Ground Power Units) or 50 Hz / 60Hz standard utility power. Optional power tees allow NTEC units to power up with the GPU supplying power to the aircraft.
NTEC Systems are also available in 12 or 28 VDC for helicopters, private and corporate aircraft.
SUPPLEMENTAL HEAT OPTION
HEATING CAPACITY:
24,500 Watts Rated (83,600 Btu) High
15,300 Watts Rated (52,200 Btu) Low
Optional supplemental heat is supplied by thermal heater rods inserted with the evaporators. When selecting supplemental heat, power is supplied through circuit breakers to separate heater relays.
Supplemental heat control is equipped with thermal safety switches, preventing heating operations when the evaporator coil is too hot or when ambient air temperature is above a pre-determined setting.
Supplemental heating systems are also equipped with evaporator/heater fan airflow safety switches preventing the heater relay from energizing without adequate system airflow.
National – Thermal Environment Control NTEC120M Btu/h Module
Delivering Rapid Cooling for Improved Aircraft Operation
High Temperature Environments
COMPONENT SPECS.
SEMI HERMETIC COMPRESSOR DESIGN DATA
| Evap (°F)/Cond (°F) |
45/100 |
| Capacity (Btu/hr) |
(60,000 ea.) 120,000 |
| Power (Watts) |
(3,080 ea.) 6,160 |
| Current (Amps) |
(15.4 ea.) 30.8 |
| EER (Btu/Wh) |
19.3 |
| Mass Flow (lbs/hr) |
(805 ea.) 1,610 |
| Rated Load Amps. Max continuous current |
(26.0 ea.) 52 |
| Sound (dba) |
75 Avg |
CONDENSER FAN DATA Vane Axial Fan (4ea)
| Operating Speed |
5,600 RPM |
| Max Output |
3,000 CFM ea. |
| Dimensions |
12.00 x7 Long 7 lbs. ea. |
| Safety Switch |
Operating Force 2 in/wg Continuous Air Flow |
| Power |
(5.5 Amps ea.) 22.0 Amps |
EVAPORATOR FAN DATA Vane Axial Fan
| Operating Speed |
5,600 RPM |
| Output @ 5 in/wg |
3,000 CFM |
| Dimensions |
12 x 12.00 Long 30 lbs. |
| Electrical |
200 VAC 400 Hz3Ø ea. |
| Power |
15.0 Amps |
PRESSURE AND THERMAL SAFETY
| LOW PRESSURE ON |
28 ± 3 PSI |
| HIGH PRESSURE OFF |
455 ± 28 PSI |
| HIGH PRESSURE AUTO RESET |
370 ± 28 PSI |
| LOW PRESSURE OFF / ON |
5/20 ± 3 PSI |
| HIGH TEMP SHUT OFF |
115° ± 5° C |
| HIGH TEMP AUTO RESET |
95° ± 5° C |
| LOW TEMP SHUT OFF |
34° ± 5° C |
| LOW TEMP AUTO RESET |
48° ± 5° C |
POWER REQUIREMENT SUMMARY NTEC120M
| SYSTEM OPERATION |
AMPS |
| |
Normal |
Max |
| Air Conditioning Operating Current |
|
|
| Heating Operating Current |
92 |
136 |
MOTOR DRIVE FREQUENCY CONVERTORS
| Input Power |
Output Power |
Component |
200 VAC 400 Hz 3Ø
or 220/240 VAC 60 Hz 3Ø |
200 VAC 3Ø 400 Hz |
Evaporator Fan |
| |
200 VAC 3Ø 400 Hz |
Condenser Fan |
| |
200VAC 3Ø 60 Hz |
Compressor |
OVERALL DIMENSIONS WEIGHT
33”L, 41"W, 40” H ≈ 650 Lbs.
